VersaLog VL-DCVC-HR Voltage Current Data Logger


  • The 16-bit analog-to-digital converter meets most high-resolution requirements.
  • The 4-MegaByte Memory stores up to 2 million measurements.
  • Seven range programmable voltage and current external input channels cover wide measurement requirements.
  • Can be accessed via USB, MODEM, or Ethernet connections with auto baud rate of up to 115 kbps.
  • 10-year battery life
  • Fast sampling mode
  • Alarm and excitation output
Useful Links:

Spec Sheet

Request a Quote

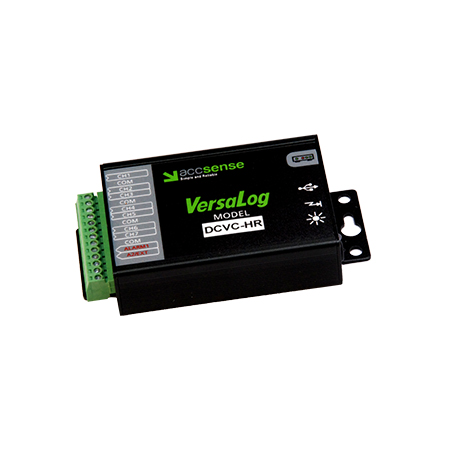

The VersaLog DCVC-HR is an 8-channel, battery powered, stand alone voltage/current DC data logger. It records up to 4 mega bytes of data and stores it in non-volatile flash memory for later retrieval. Input voltage/current signals can be from sensors, transducers, transmitters or any other common voltage/current sources.

Featuring an aluminum enclosure and conformal coating PCB, the logger has excellent performance in the harshest industrial environment.

Powered by a 16-bit ADC and programmable input range, the logger is well suited to science and laboratory applications where precise and accurate measurement is critical.
